Harness enterprise-class storage performance with the Dell PERC H965i Adapter RAID Controller, a powerful hardware RAID solution built for demanding server environments and data-intensive workloads. Featuring a PCIe 4.0 x16 host interface and the advanced Broadcom SAS4116W RAID-on-Chip controller, this adapter delivers exceptional throughput while supporting modern storage infrastructures. The controller provides compatibility with SAS, SATA and NVMe drives, enabling organisations to deploy flexible storage configurations that balance performance, capacity and reliability. With support for SAS speeds up to 22.5Gb/s and NVMe PCIe Gen4 SSDs, the H965i Adapter is well suited to virtualisation, database, analytics and business-critical applications.
Equipped with 8GB of high-speed DDR4 flash-backed cache memory, the controller accelerates data access and write operations while helping to safeguard cached data in the event of an unexpected power interruption. Support for RAID 0, 1, 5, 6, 10, 50 and 60 allows administrators to optimise storage arrays for either maximum performance, increased fault tolerance or a balance of both. Advanced enterprise features including hot-plug drive support, RAID level migration, online capacity expansion, secure encrypted drive compatibility and non-RAID/JBOD operation provide the flexibility required for evolving storage requirements without disrupting operations.
Supporting a wide range of drive technologies, the PERC H965i Adapter accommodates SAS HDDs, SAS SSDs, SATA HDDs, SATA SSDs and NVMe SSDs while maintaining compatibility with 512n, 512e and 4Kn sector formats. The controller's 16-lane architecture delivers substantial connectivity for internal storage deployments, making it an excellent choice for expanding capacity, improving performance or modernising existing server platforms. Combining enterprise-grade RAID protection, high-speed connectivity and broad drive compatibility, the Dell PERC H965i Adapter provides a dependable foundation for scalable and resilient storage environments.

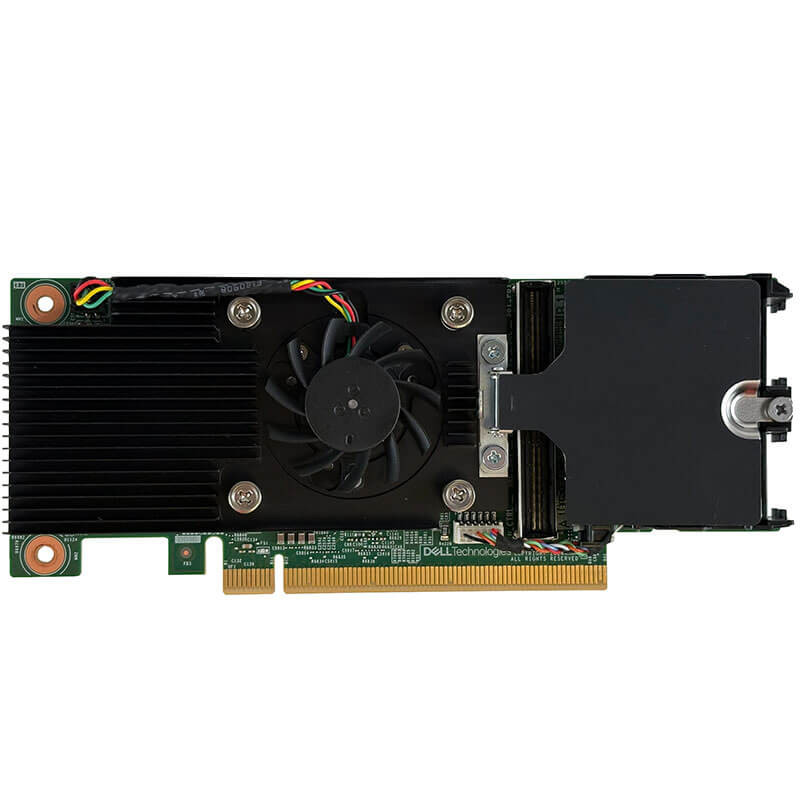

Dell PERC 12 H965i RAID Controller
SAS/SATA/NVMe, PCIe 4.0 x16, (RAID 0, 1, 5, 6, 10, 50, 60), D P/N: 0N8D70 / N8D70
